Features

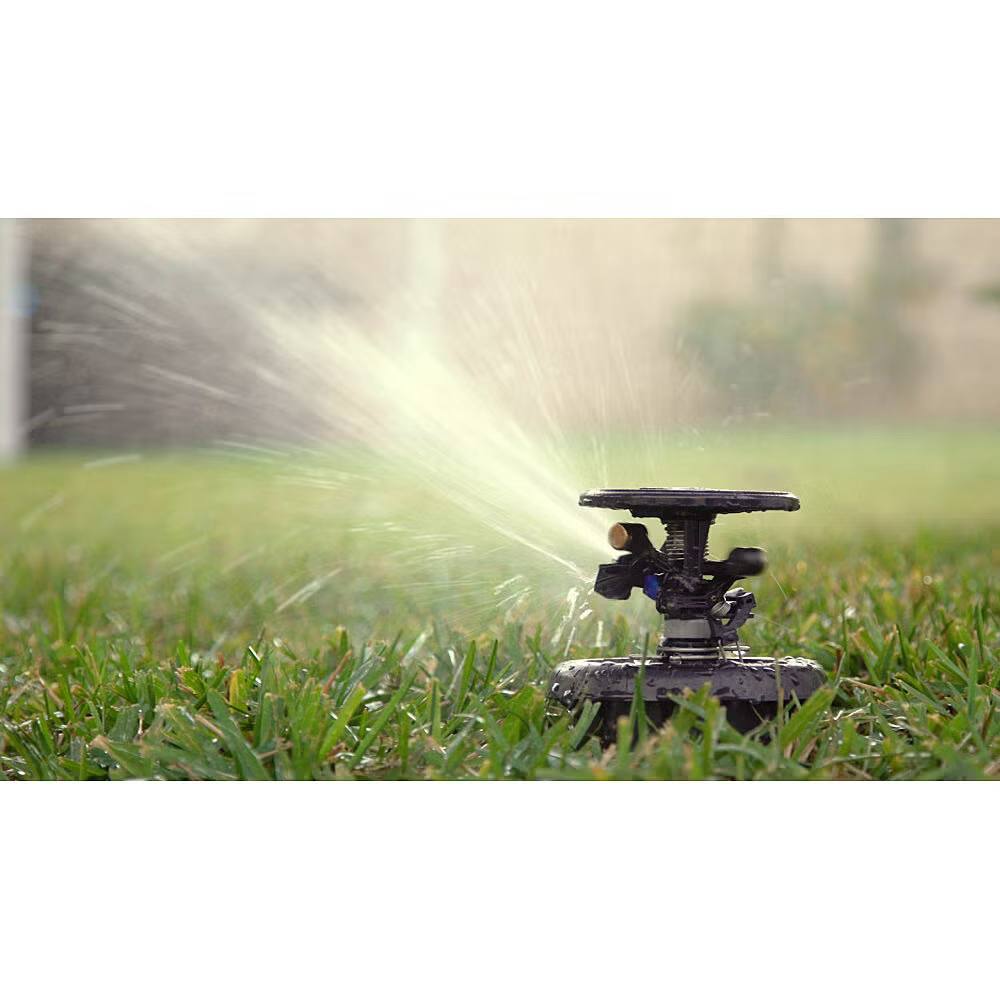

- Proven impact drive with straight-through flow for superior performance in dirty water
- Five standard trajectory and two low angle (LA) color-coded nozzles for matched precipitation and in a wide range of applications
- 360° full-circle OR arc adjustable from 20° to 340°

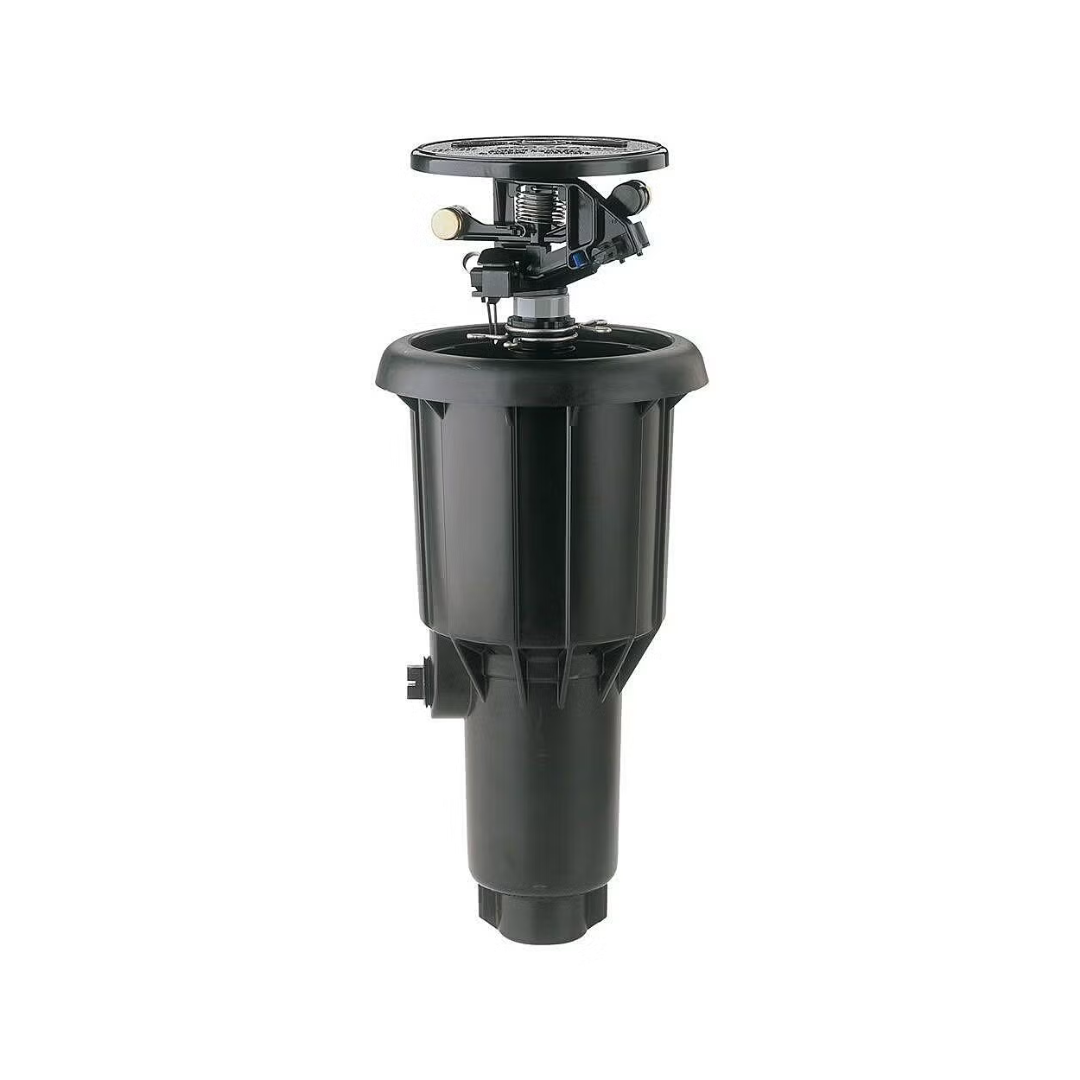

- Side and combination ½” or ¾” bottom inlet for design flexibility (Maxi-Paw)
- 3 year warranty
Specs
- Precipitation Rate: 0.28 to 1.21 inches per hour (7 to 31 mm/h)
- Radius: 22 to 45 feet (6,7 to 13,7 m)
- Radius with Radius Reduction Screw: 18 ft (5,4 m)
- Pressure: 25 to 60 psi (1,7 to 4,1 Bars)
- Flow: 1.5 to 8.4 GPM (0,34 to 1,91 m3/h; 0,9 to 0,53 l/s)
- Combination 1/2″ (15/21) or 3/4″ (20/27) FPT bottom inlet 1/2″ (15/21) FPT side inlet

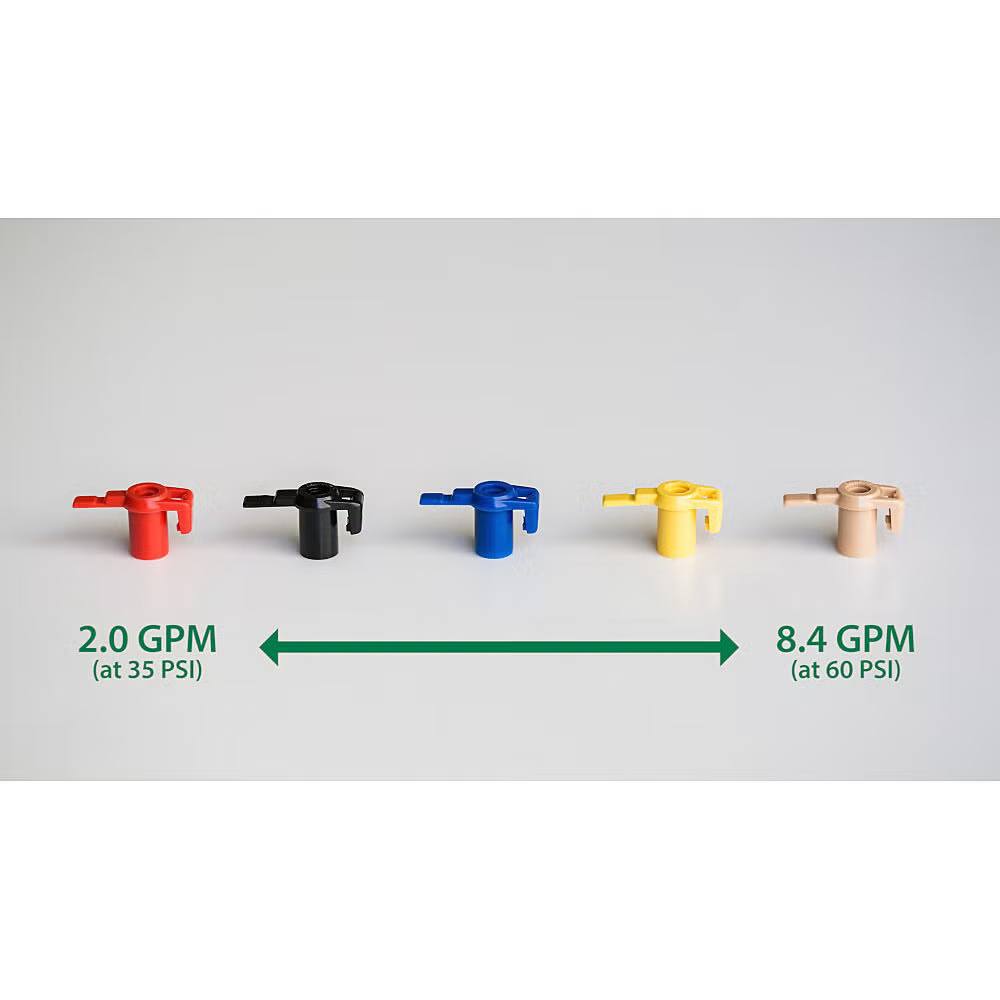

- Nozzles: 06-red; 07-black; 08-blue; 10-yellow; 12-beige
- Low angle (LA) nozzles: 07 LA-black; 10 LA-yellow
- Nozzle outlet trajectory is 23° for 06, 07, 08, 10, and 12 nozzles
- LA nozzle outlet trajectory is 11°
Available Nozzles:
- Standard trajectory 06, 07, 08, 10, 12
- Low Angle 07LA, 10LA
Dimensions
- Overall height: 9 3/10″ (23,6 cm)
- Pop-up height: 3″ (7,6 cm)
- Exposed surface diameter: 5″ (12,7 cm)

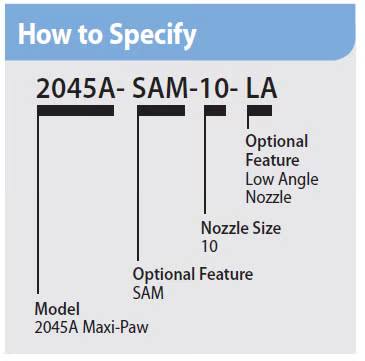

Model Comparison

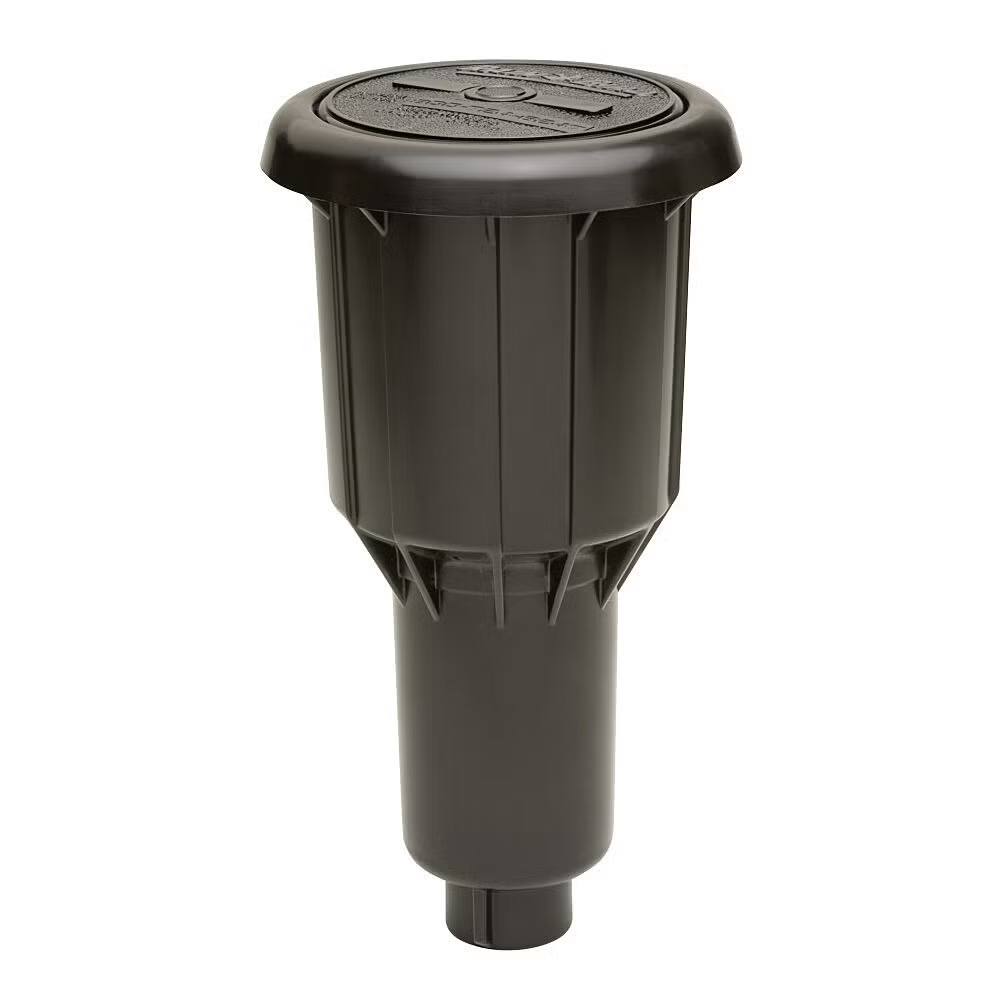

- 2045A: Closed Case Pop Up Sprinkler
- 2045A-NP: Closed Case Pop Up Sprinkler with Non-Potable Purple Cover
- 2045A-SAM: Closed Case Pop Up Sprinkler with Seal-A-Matic Check Valve
- 2045A-SAM-NP: Closed Case Pop Up Sprinkler with Seal-A-Matic Check Valve and Non-Potable Purple Cover
* For Nozzle Information see performance chart
