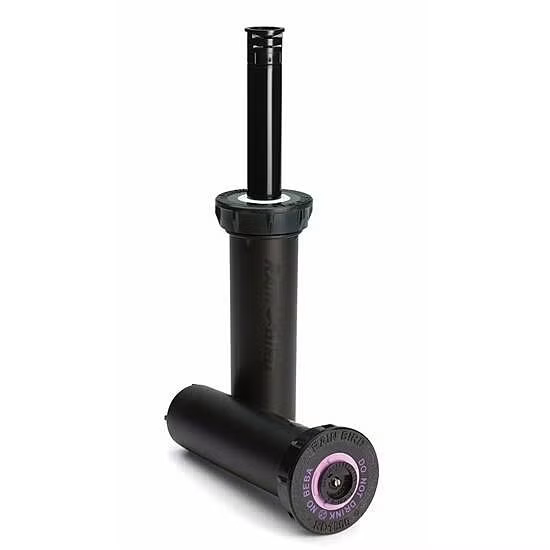

RD1800 Series Spray Sprinkler Bodies
,

RD1800 Series Spray Sprinkler Bodies

Robust design for harsh applications

Every landscape has elements that wear on your spray sprinkler bodies over time—from sand and grit to high water pressure and harmful chemicals in reclaimed water.

RD1800™ was designed with these incredibly harsh conditions in mind. As the next evolution in spray sprinkler bodies from Rain Bird—the industry leader in sprays—RD1800 was built with exclusive materials and features that stand up to the challenges of any setting (see Features below for more information about what sets the RD1800 apart)

Categories: ,

Features

  • The Ultimate Protection for both Potable and Non-Potable Markets
  • The RD1800 Series has been built to withstand harsh operating conditions such as chemically treated recycled water (reclaimed / nonpotable), dirty water containing grit, debris, and other particulates, and high operating pressures common in commercial irrigation systems.
    Non-potable models add an extra level of defense against the chlorine and chemicals found in recycled water, and feature a purple seal with the international “Do Not Drink” symbol and warnings in English and Spanish
Benefits
  • Patented, Triple-Blade Wiper Seal precisely balances flushing, flow-by and debris protection to optimize performance and durability at pop-up and retraction. Precision-controlled flushing at pop-up and retraction clears debris, ensuring positive stem retraction
  • Unique debris pockets hold grit in place, removing it from circulation and preventing long-term damage. Parts are resistant to corrosion in treated recycled water containing chlorine
  • SAM PRS Models: Incorporates all RD1800 Series SAM and PRS features. Meets the needs of all spray areas, regardless of changing elevation or water pressures
  • Flow-Shield™ Models: Provides low flow vertical water jet visible from +200’ line of sight when a nozzle has been removed
  • Non-Potable Water Models: Provides an alternative to clip-on caps and molded purple covers. Easy-to-read English “DO NOT DRINK”, Spanish “NO BEBA” warnings, and international ‘Do Not Drink’ symbol

Specs

  • Spacing: 2.5 to 24 feet (0.8 to 7.3 m)
  • Pressure: 15 to 100 psi (1.0 to 6.9 bar)
  • SAM capability: Holds up to 14 feet (4.2 m) of head; 6 psi (0.3 bar)
  • Flow-by SAM Models: 0 at 15 psi (1.0 bar) or greater; 0.5 gpm (0.1 m³/h; 0.03 l/s)
  • Flow-by All Other Models: 0 at 10 psi (0.7 bar) or greater; 0.5 gpm (0.1 m³/h; 0.03 l/s)
  • SAM-PRS models regulate nozzle pressure to an average 30 or 45 psi (2.1 or 3.1 bar) with inlet pressures of up to 100 psi (6.9 bar)
  • Side inlets featured on non Seal-A-Matic™ (SAM) models only
  • Five-year trade warranty

Dimensions

  • ½” (15/21) NPT female threaded inlet

Model Comparison

Base Models:

  • RD04-NP: 4″ (10cm) pop-up height, Non-Potable
  • RD12-NP: 12″ (30.5cm) pop-up height, Non-Potable

SAM PRS-30 Models:

  • RD04-S-P-30-NP: 4″ (10cm) pop-up height, Non-potable
  • RD06-S-P-30-NP: 6″ (15cm) pop-up height, Non-potable
  • RD12-S-P-30-NP: 12″ (30.5cm) pop-up height, Non-potable

SAM PRS-30 & Flow-Shield™ Models:

  • RD04-S-P-30-F: 4″ (10cm) pop-up height
  • RD04-S-P-30-F-N: 4″ (10cm) pop-up height, Non-potable
  • RD06-S-P-30-F: 6″ (15cm) pop-up height
  • RD06-S-P-30-F-N: 6″ (15cm), Non-potable
  • RD12-S-P-30-F: 12″ (30.5cm) pop-up height
  • RD12-S-P-30-F-N: 12″ (30.5cm), Non-potable

SAM PRS-45 Models:

  • RD04-S-P-45-NP: 4″ (10cm) pop-up height, Non-potable
  • RD06-S-P-45-NP: 6″ (15cm) pop-up height, Non-potable
  • RD12-S-P-45-NP: 12″ (30.5cm) pop-up height, Non-potable

SAM PRS-45 & Flow-Shield™ Models:

  • RD04-S-P-45-F: 4″ (10cm) pop-up height
  • RD04-S-P-45-F-N: 4″ (10cm) pop-up height, Non-potable
  • RD06-S-P-45-F: 6″ (15cm) pop-up height
  • RD06-S-P-45-F-N: 6″ (15cm) pop-up height, Non-potable
  • RD12-S-P-45-F: 12″ (30.5cm) pop-up height
  • RD12-S-P-45-F-N: 12″ (30.5cm) pop-up height, Non-potable
