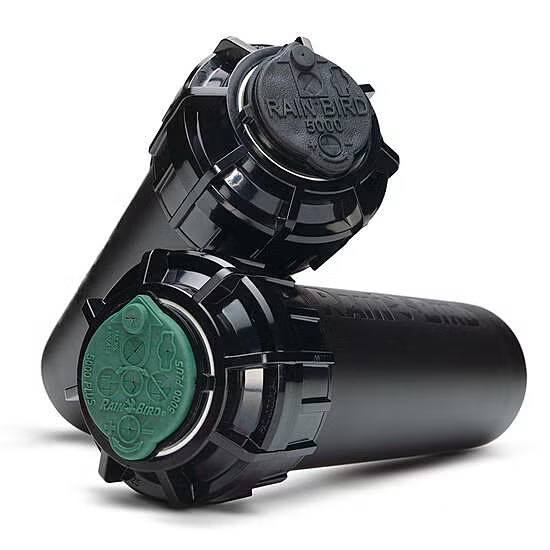

5000 / 5000+ Series

Features

Oversized wiper seal prevents leaks and protects internals from debris
Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
A history of proven performance and reliability tested in millions of installations
Self-flushing arc adjustment port that prevents buildup of debris
5 year trade warranty

Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
Radius: 25 to 50 feet (7.6 to 15.2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25 to 65 psi (1.7 to 4.5 bar)
Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
Reversing full- and part-circle adjustment from 40° – 360°
Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° – 25°.

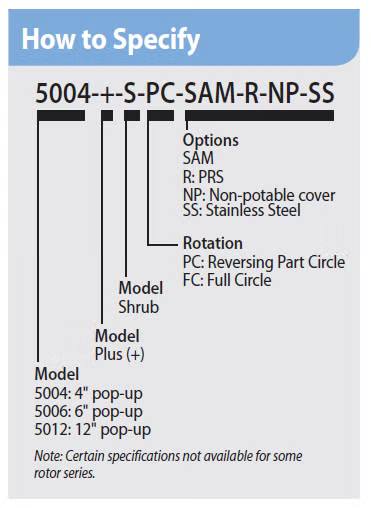

Optional Features

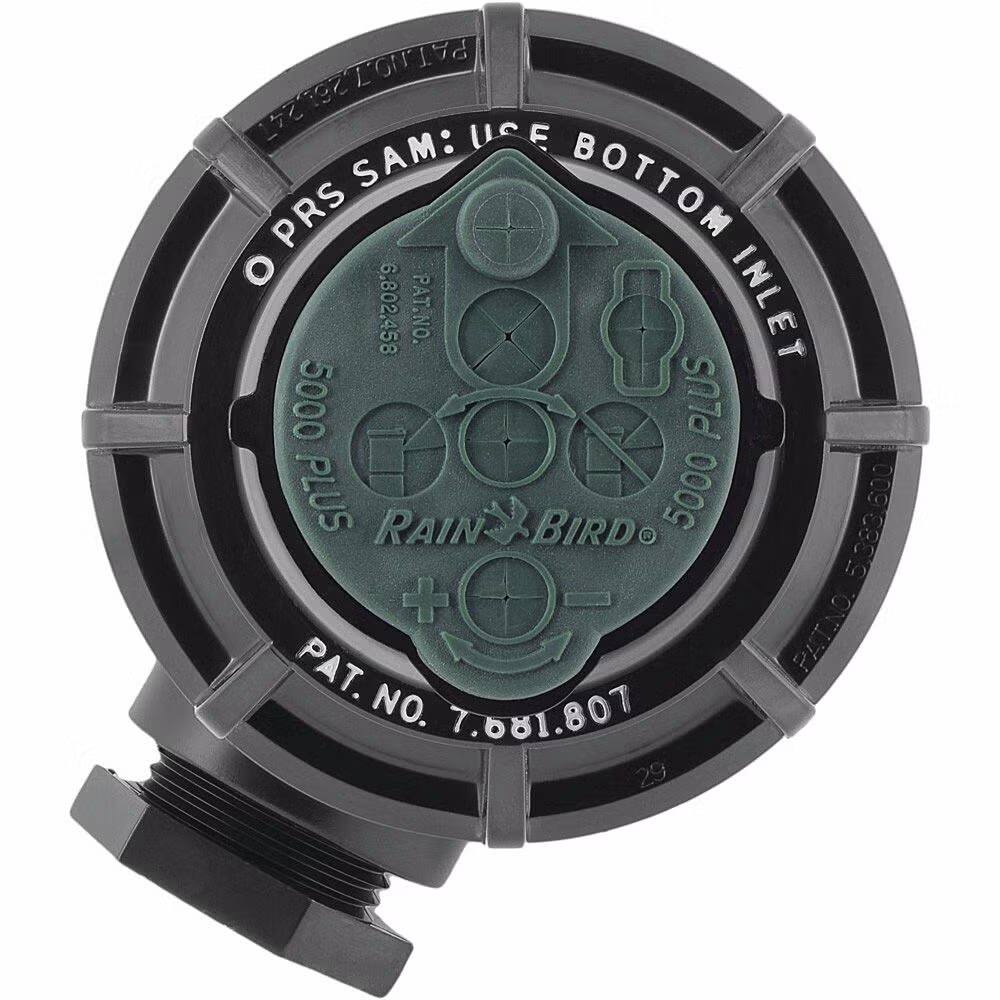

Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change

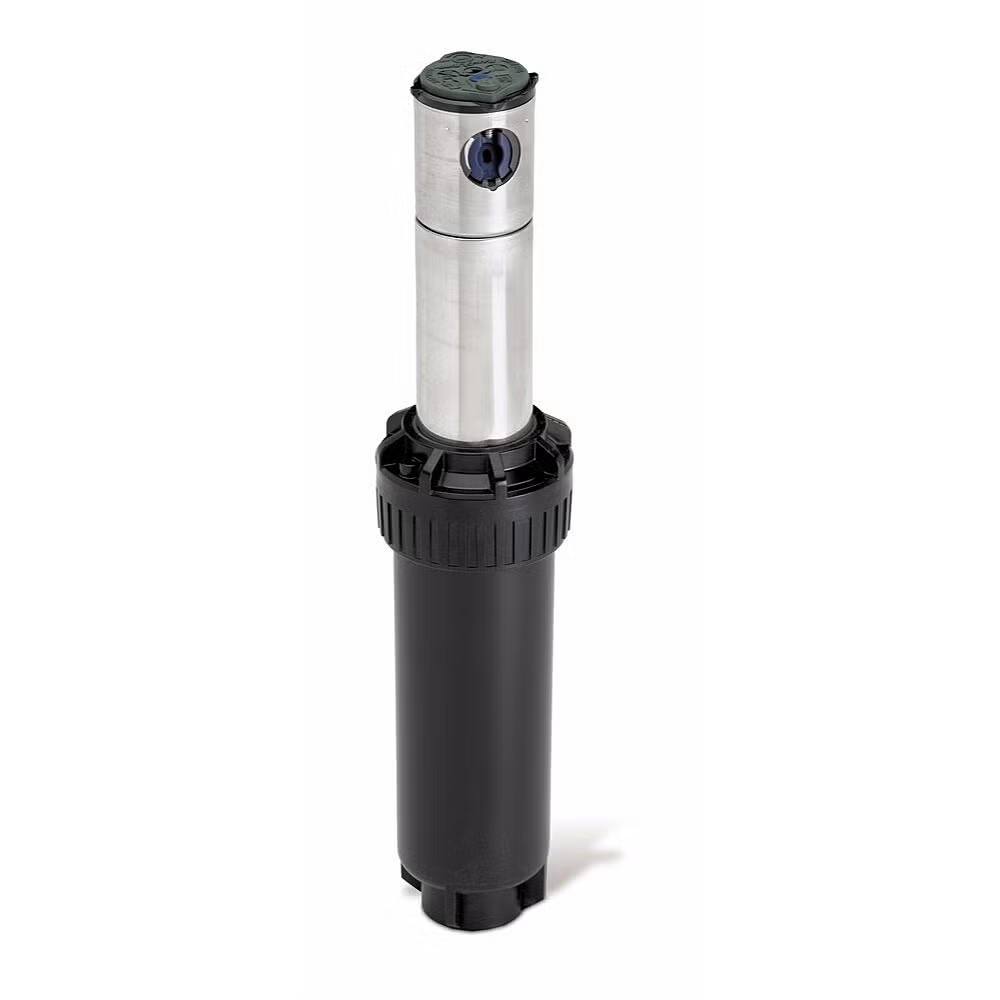

Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6″ models)
Purple cover (NP) :for non-potable systems

Pop-up height: Shrub; 4″ (10,2 cm); 6″ (15,2 cm); 12″ (30,5 cm)
Overall body height: Shrub: 7 3/4″ (19,7cm) 4″: 7 3/8″ (18, 5 cm); 6″: 9 5/8″ (24,5 cm); 12″: 16 7/8″ (42,9 cm)
Exposed surface diameter: 1 5/8″ (4,1 cm)
