VB Series Valve Boxes

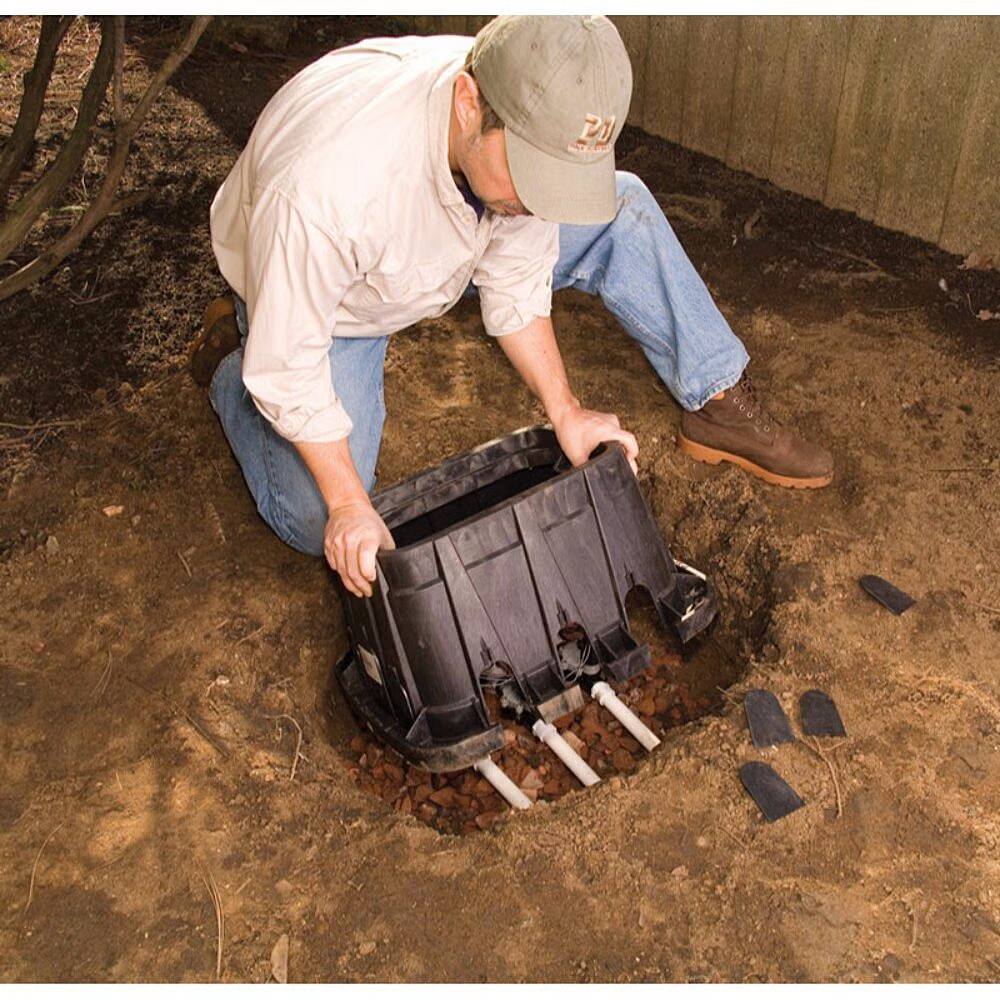

Work faster and easier with a Rain Bird Valve Box. We’ve created unique knock-outs for easy pipe placement and reduced installation time – so no more tedious cutting. And the knock-outs slide back into place above the pipe to keep out dirt on backfill.

All Rain Bird Valve Boxes were engineered to maintain their horizontal and vertical integrity under load, even with the knock-outs removed.

Other unique features include a bolt hole knock-out to help keep critters out of the box when the locking bolt isn’t used and a shovel access slot on the side of the box that makes it easy to remove the lid.

ther unique features include a bolt hole knock-out to help keep critters out of the box when the locking bolt isn’t used and a shovel access slot on the side of the box that makes it easy to remove the lid.

LEED Certification Logo
Earth‑friendly, LEED-compliant material made of 100% recycled materials (black boxes and black lids only)
Categories: ,

Features

  • Strength and Stability – Multiple sizes and shapes are designed with corrugated sides and wide flange bases for maximum durability, compression strength, and stability
  • Smart Lid Design – Designed with no holes to keep out pests, beveled edges to minimize damage potential from turf equipment, and for easy hand and shovel access
  • Flexible Installations – Interlocking stacking capabilities, extension models and pipe hole knockouts support deeper and flexible installations
  • Environmentally Friendly – Earth‑friendly, LEED-compliant material made of 100% recycled materials (black boxes and black lids only)

Dimensions

  • 7 Inch Round Valve Box- Bottom Diameter: 8.4 inches (21.4 cm) x  Height: 9.2 inches (23.4 cm)
  • 10 Inch Round Valve Box– Bottom Diameter: 11.8 inches (30,0 cm) x  Height: 10.2 inches (26,0 cm)
  • Standard Valve Box– Length: 23.2 inches (59.0 cm)  x Width: 19.3 inches (49.1cm)  x Height: 12.5 inches (31.8 cm)
  • Standard Extension – Length: 20.0 inches (50.8 cm) x  Width: 14.75 inches (37.5 cm) x Height: 6.75 inches (17.1 cm)
  • Jumbo Valve Box – Length: 27.6 inches (70,0 cm) x Width: 21.0 inches (53,2 cm) x  Height: 12.5 inches (31.6 cm)
  • Jumbo Extension – Length: 24.4 inches (62.0 cm) x Width: 17.9 inches (45.5 cm) x Height: 6.75 inches (17.2 cm)
  • Super Jumbo Valve Box – Length: 33.1 inches (84.1 cm) x Width: 23.9 inches (60.7 cm) x Height: 15.0 inches (38.1 cm)
  • Maxi Jumbo Valve Box – Length: 40.4 inches (102.5 cm) x Width: 27.1 inches (68.9 cm) x Height: 18.0 inches (45.7 cm)

Model Comparison

7 Inch Round Valve Box

  • VB7RND: 7″ Round Body & Green Lid
  • VB7RNDB: 7″ Round Body Only
  • VB7RNDBKL: Black Lid
  • VB7RNDGL: Green Lid
  • VB7RNDPL: Purple Lid

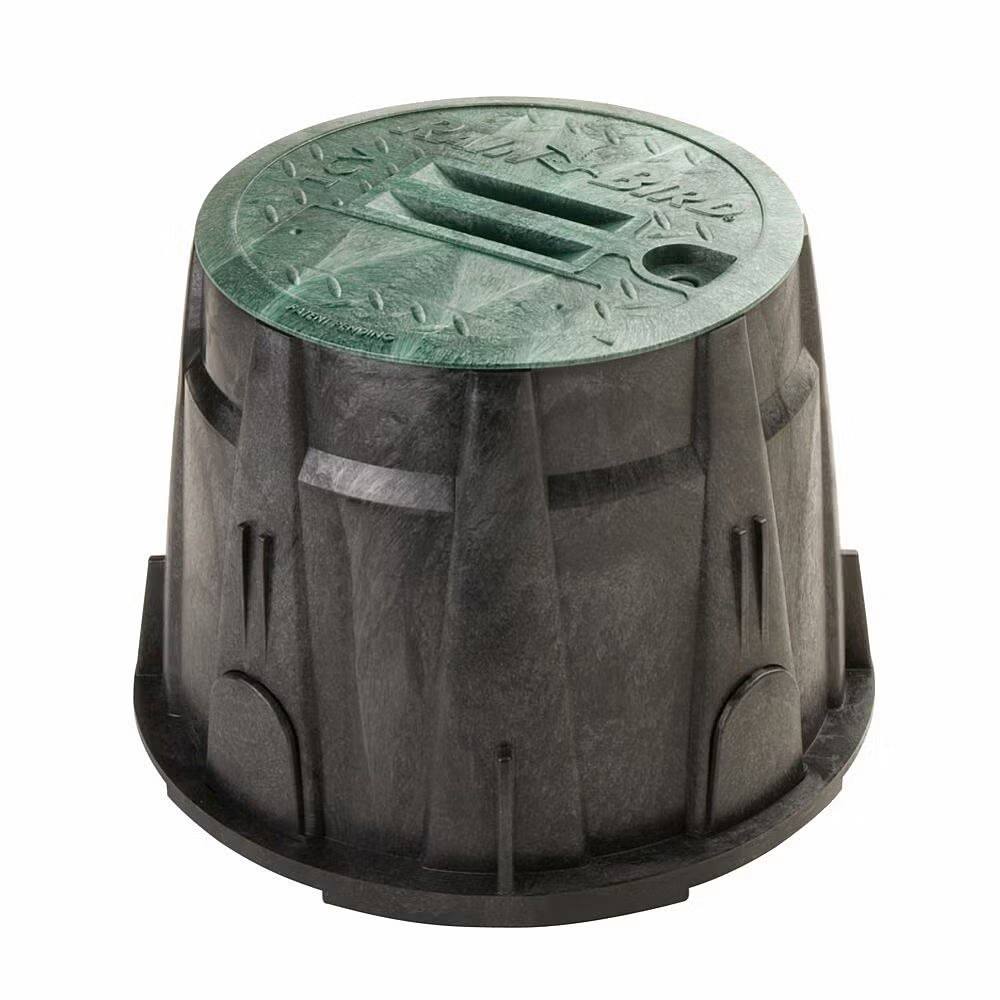

10 Inch Round Valve Box

  • VB10RND: 10″ Round Body & Green Lid
  • VB10RNDB: 10″ Round Body Only
  • VB10RNDL: Green Lid
  • VB10RNDPL: Purple Lid
  • VB10RNDBKL: Black Lid
  • VB10RNDH: 10″ Round Body & Locking Green Lid

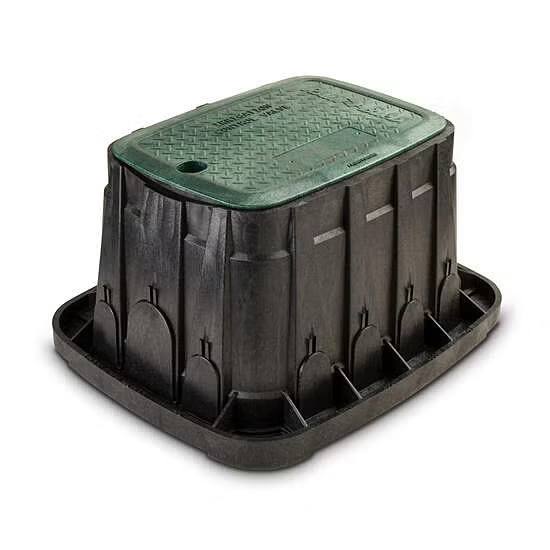

Standard Valve Box

  • VBSTD: Standard Body & Green Lid
  • VBSTDB: Standard Body Only
  • VBSTDBKL: Black Lid
  • VBSTDPL: Purple Lid
  • VBSTDH: Standard Body & Locking Green Lid

Standard Extension

  • VBSTD6EXTB: Standard Extension Body Only

Jumbo Valve Box

  • VBJMB: Jumbo Body & Green Lid
  • VBJMBB: Jumbo Body Only
  • VBJMBGL: Green Lid
  • VBJMBPL: Purple Lid
  • VBJMBBKL: Black Lid
  • VBJMBH: Jumbo Body & Locking Green Lid

Jumbo Extension

  • VBJMB6EXTB: Jumbo Extension Body Only

Super Jumbo & Maxi Jumbo Valve Box

  • VBSPRH: Super Jumbo Body & 2 Lock Green Lid
  • VBMAXH: Maxi Jumbo Body & 2 Lock Green Lid

Locking Systems

  • VB-LOCK-H: Hex head 3⁄8″ x 2 1⁄4″ (1.0 x 5.7 cm) bolt, washer, and clip
  • VB-LOCK-P: Penta head 3⁄8″ x 2 1⁄4″ (1.0 x 5.7 cm) bolt, washer, and clip
