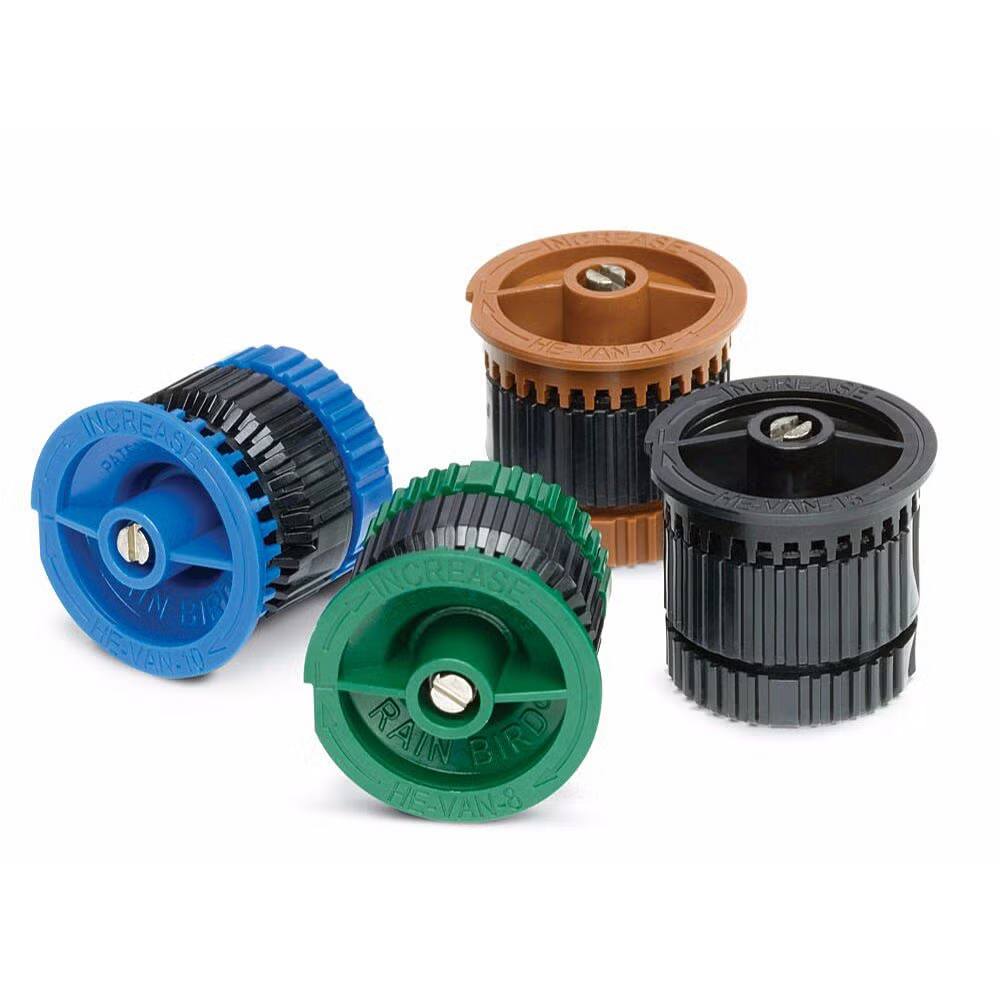

HE-VAN High-Efficiency Variable Arc Nozzles

Features

HE-VAN’s even coverage allows you to shorten run times by up to 35%, saving you water and money, while still maintaining a healthy lawn
HE-VAN has more than a 40 percent even-coverage improvement over existing variable arc nozzles

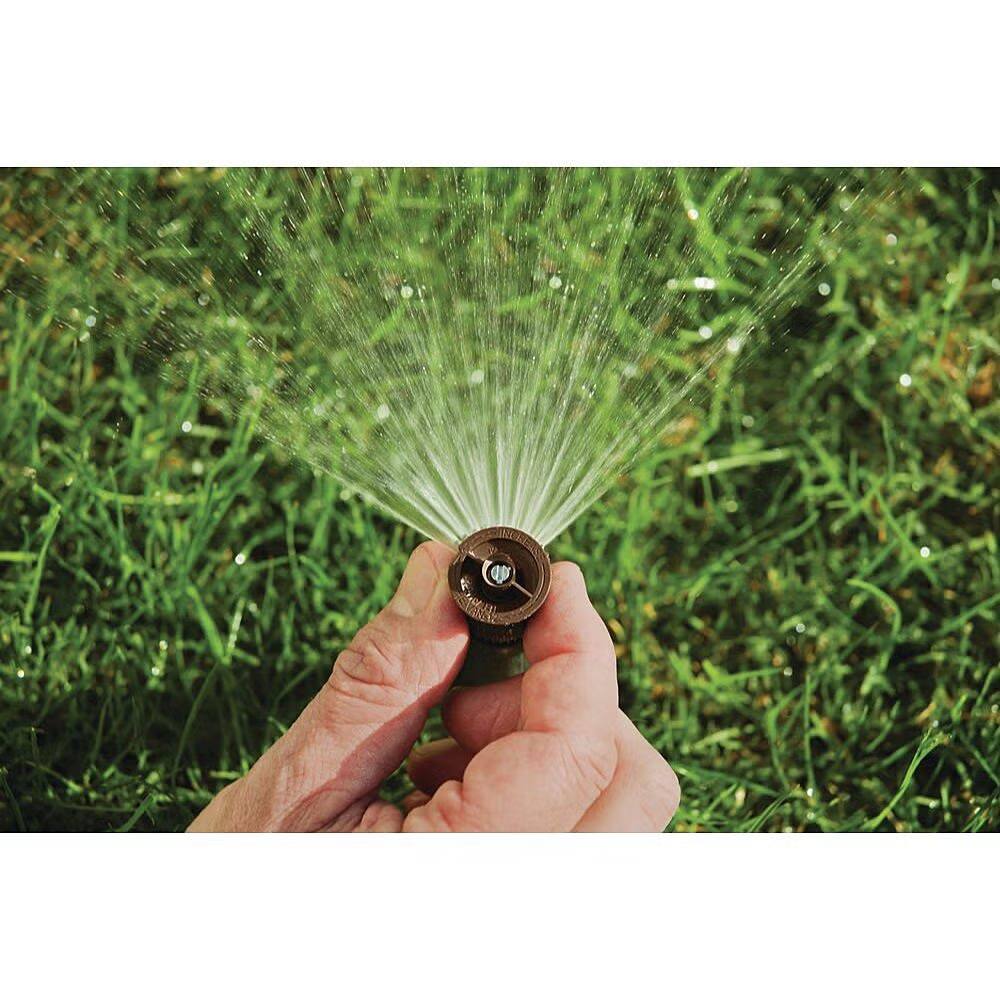

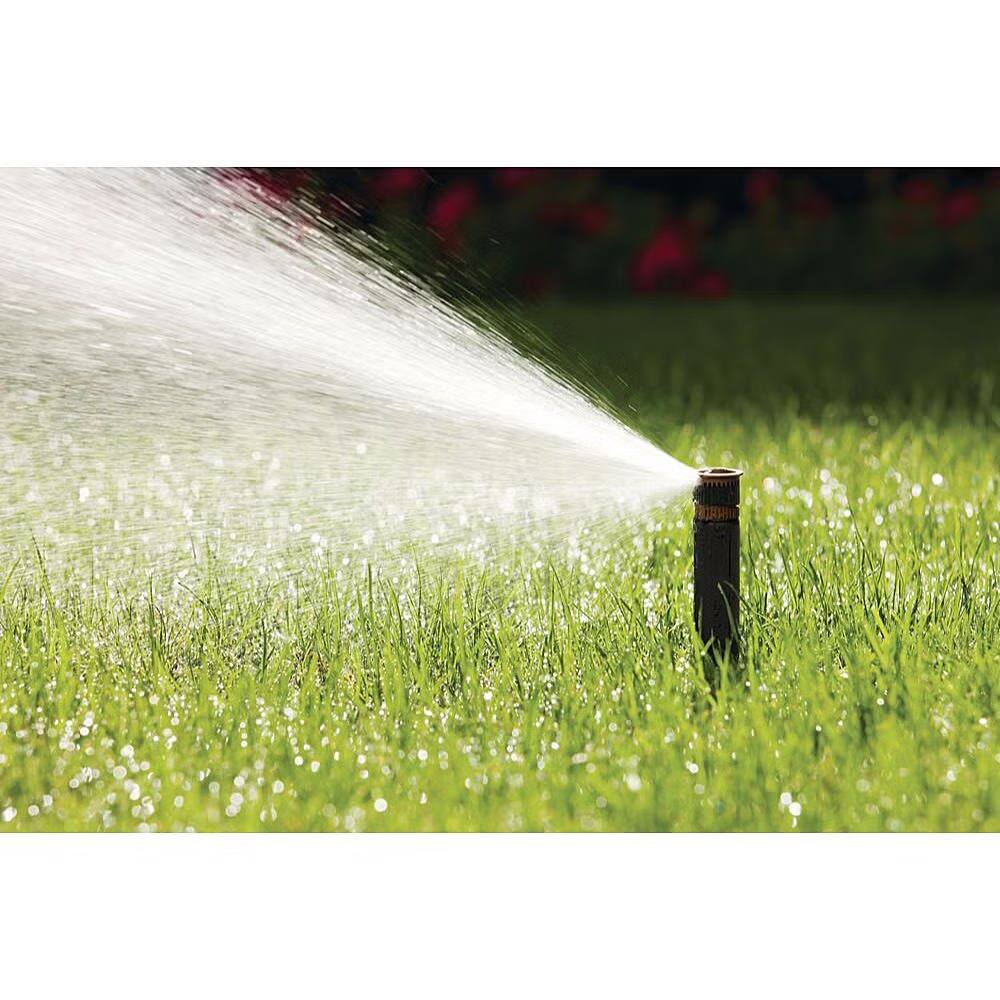

HE-VAN nozzles have a unique stream pattern, designed for superior coverage and wind resistance
Low-trajectory spray and large water droplets prevent misting and airborne evaporation, so the right amount of water is delivered to the right place
Gentle close-in watering eliminates dry spots around the spray head
HE-VAN nozzles throw to the exact specified radius, delivering the cleanest edge of any VAN on the market today
Reduced zone run times, compared to competitive nozzles, help stay within tight watering windows, conserve water, and save money
With full adjustability from 0° to 360°, you’ll be able to efficiently water landscapes of all shapes, while saving time and stocking fewer nozzles
Matched precipitation rates allow you to install Rain Bird HE-VAN, MPR, and U-Series nozzles on the same zone
HE-VAN nozzles have a tactile click to keep the arc setting from drifting over time
Three-year trade warranty

Spacing: 6 to 15 feet (1.8 to 4.6 m)*
Pressure: 15 to 30 psi (1.0 to 2.1 bar)
Optimum pressure: 30 psi (2.1 bar)**
* These ranges are based on proper pressure at nozzle
** Rain Bird recommends using 1800/RD1800 PRS Spray Bodies to maintain optimum nozzle performance in higher pressure situations

Efficiency Ratings

Rain Bird HE-VAN Nozzles deliver an average DULQ of 70%, more than a 40% improvement over typical variable arc spray nozzles
Rain Bird HE-VAN Nozzles deliver a SC less than or equal to 1.6, which is 35% lower than the typical variable arc spray nozzle
